V7B High-Efficiency Five-Axis CNC Milling Machine Single Head CNC Machine Center for Metal Molds

Model: V7B
Table Size: 1440 x 900mm
XYZ Axis Travel: 1400/900/550mm
Spindle Taper: BT40
Spindle Speed: 12000rpm

Overview:

Are you still worried about labor costs and difficulty in recruiting workers?
Are you still worried about insufficient space?
Are you still worried about mass production?
Are you still worried about insufficient machine rigidity?

Don’t worry, our multi spindle CNC machining center V7B series solves all your problems!

Main Structure:

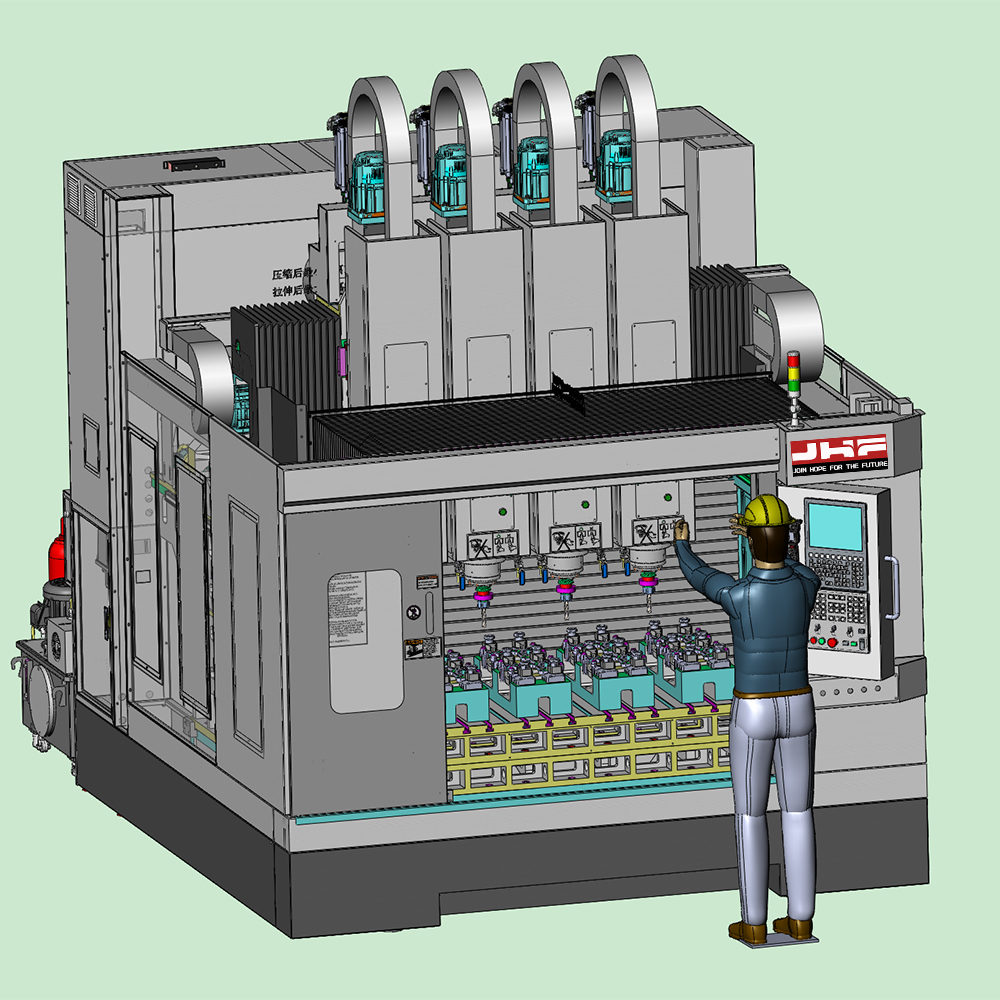

The machine is a beam-moving structure, mainly consisting of worktable, bed, column, headstock, pneumatic system, lubrication system, cooling and filtration system, chip removal device, operation panel and electrical control system.

Each coordinate axis is defined as:

X-axis: The crossbeam moves longitudinally forward and backward;
Y-axis: The saddle moves laterally left and right along the crossbeam;
Z1, Z2, Z3, Z4 axes: The headstock moves vertically up and down on the saddle (either arbitrarily or synchronously);
B-axis: Rotates around the Y-axis (Optional).

Machine Feature:

Overhead crane structure. An alternative to European imported multi-spindle machine tools.

Standard configuration: BT40/12000RPM mechanical spindle; 12000rpm/20000rpm electric spindle optional; BT30 spindle optional.

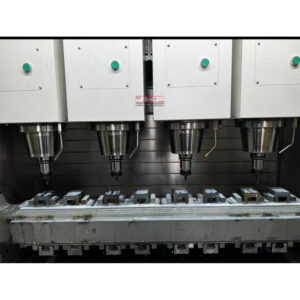

Simultaneous processing of four identical products across four heads, achieving 3.5-4 times the throughput while maintaining lower labor, rent, and utility costs compared to four machines.

Equipped with our independently developed tool magazine, each head has 27 tools, totaling 108 tools (patent pending).

Spindle torque: 70NM; Rigid tapping capacity: M12 (theoretical value: M14, carbon steel); worktable load capacity: 800kg, meeting high-rigidity machining requirements.

We can provide customized services based on customer machining requirements, such as automated fixture design. 4-axis and 5-axis can be customized.

Technical Parameters:

Model	V7B (single-head)
X axis travel	1400 (overhead crane, dual drive)
Y axis travel	900mm
Z axis travel	550mm(can be moved independently)
B axis travel	0-360° (optional)
C axis travel	0-360° (optional)
Three axis rapid feed	40/40/40 m/min
Distance between spindle nose to table	150-700mm
Spindle center distance	–
Table size	1440 x 900 mm
Door width	1300mm
Max load weight of table	800kg
Spindle speed	12000rpm
Power	15kw
Torque	70Nm
Spindle taper	BT40
Number of tools	24T
Weight	About 12 tons
Dimensions	2.88 x 4.0 x3.6m

The Scope of Application:

Suitable for mold, non-ferrous metals, composite materials, steel, aluminum and other products at any Angle of drilling, milling, rigid tapping.
Widely used in automobile, aviation and other industries.
Multiple parts are clamped once and processed at the same time.

Gearbox Car air conditioning compressor housing

Automotive air conditioning compressor parts Automotive shock absorber components

Optional configuration:

FANUC / SYNTEC / Siemens control system （single-head and 2 head machine center)
Coolant through spindle 30bar / 50bar
Fourth axis (400)
Electric spindle HSKA63-20000/ BBT40-15000
